PTACIntellicon PTAC        PTAClogo

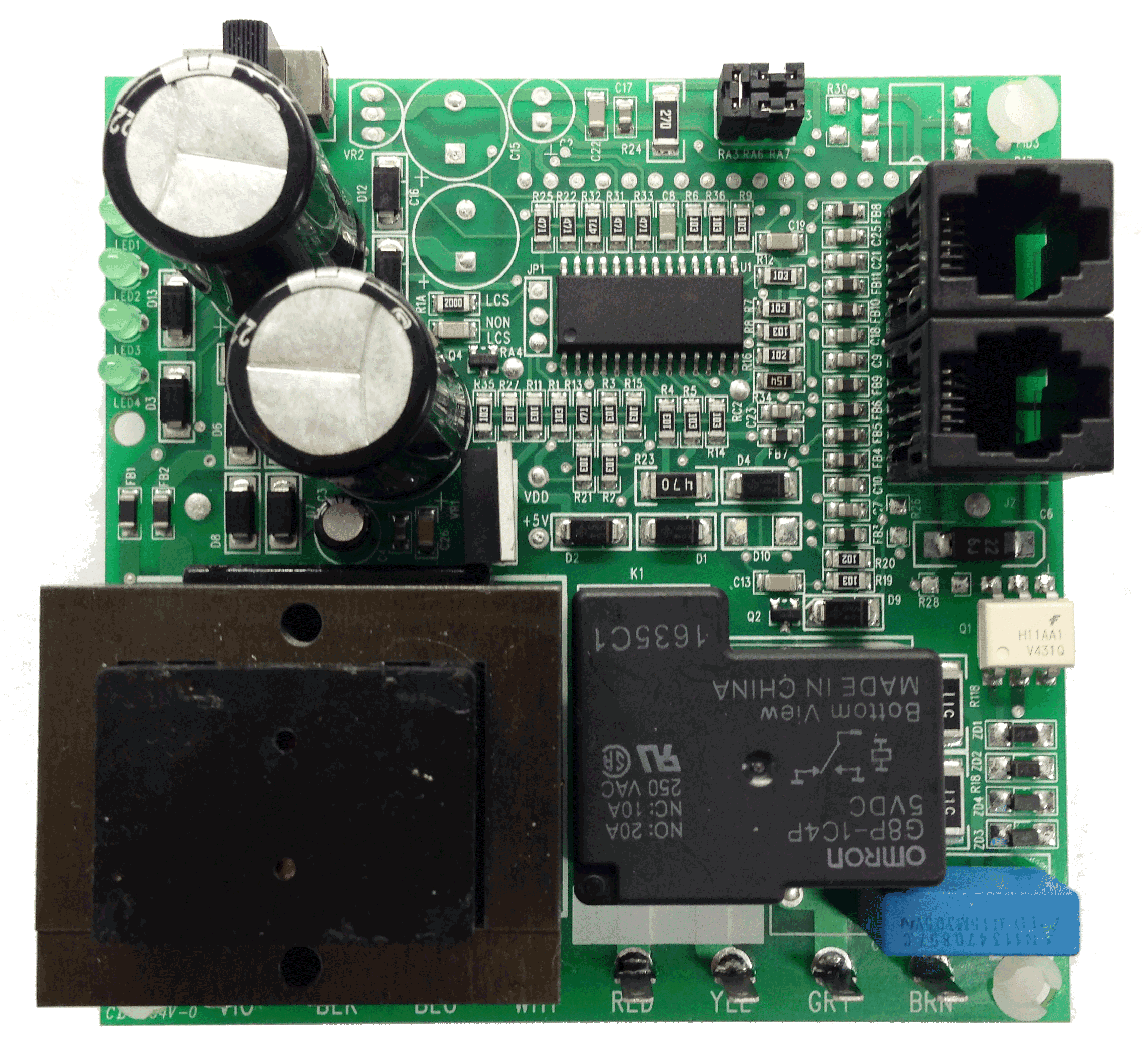

The Intellidyne PTAC is a microprocessor-based, electronic control that uses intelligent Dynamic Cycle Management® (DCM) technology to automatically adjust the compressor cycles to achieve maximum efficiency and reduce electrical usage, while assuring consistent comfort levels.  The compact size of Intellidyne's PTAC control makes it easy to install in window-mounted or wall-based air conditioning units.  It is guaranteed to reduce electric consumption by at least 10%.



Features

Features

  • Dynamic Cycle Management® (DCM) technology
  • LED indicators show operating modes
  • Suitable for through-the-wall and window mounted air conditioning systems
  • Protects compressor against short cycling
  • Compact size for simple installation by a qualified HVAC/R installer
  • Field configurable for maximum energy savings
  • Compatible with heatpump units for maximum year-round efficiency
  • Reduces maintenance and extends compressor life
  • Fail-safe operation guaranteed to save energy
  • 5-Year replacement warranty for breakdowns or manufacturer defects



Specifications

Specifications

  • Mounting in any position via four sheet metal screws
  • Size: 3.72"H x 3.72"W x 1.10"D
  • Operating Humidity: 5% - 9% Non-Condensing
  • Operating Temperature Range: -10°F - +120°F -23.5°C - +49°C
  • Power Input: 24 VAC @ 5W
  • Control Circuit: 24, 115, 220 VAC
  • Relay Contact: 10A @ 220VAC General Purpose
  • Made in USA
